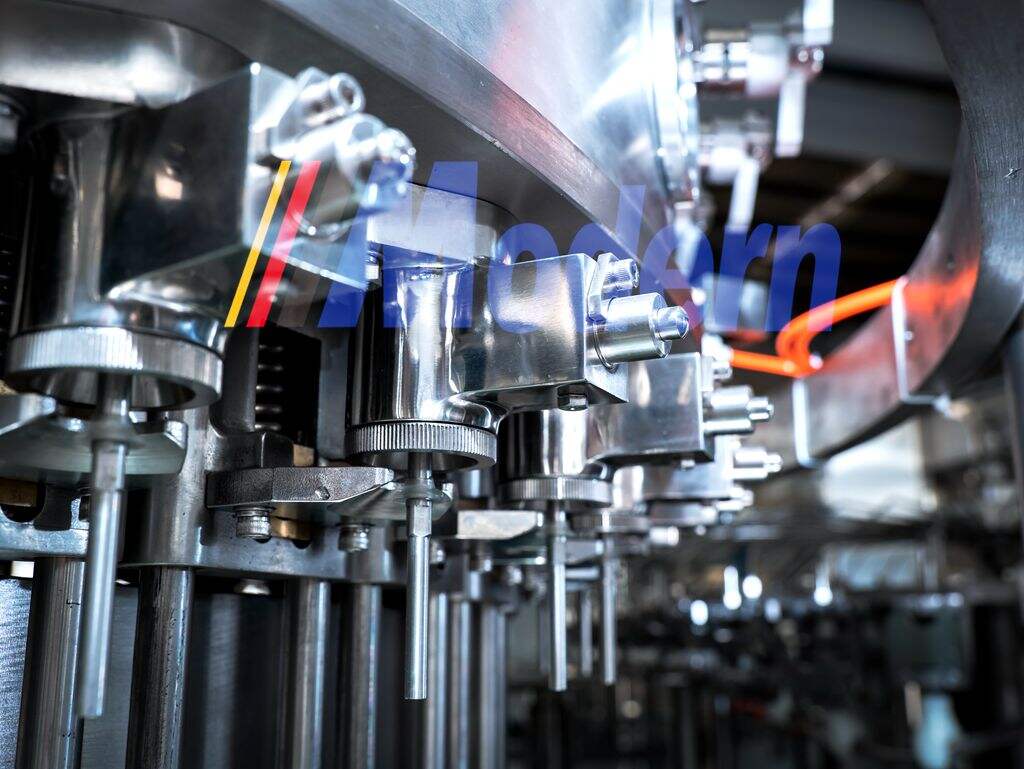

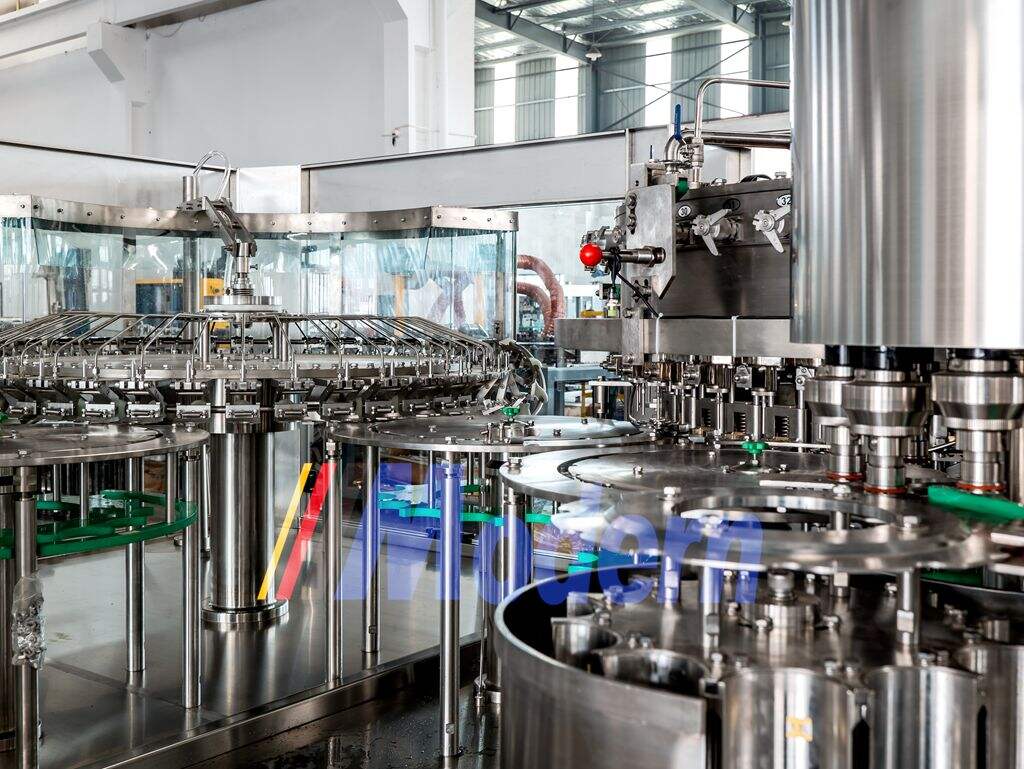

The CSD filling machine is specifically designed for filling PET bottled carbonated beverage which has the capacity from 1000BPH to 20000BPH. And the filling accuracy of our machine is more than 99%, which means the hygienic conditions are ensured and the manual operation is simplified.
As can be clearly seen from the data below, this carbonated drink filling machine is specifically designed for filling PET bottle. In order to meet the customers’ standards, our filling machine can be adjusted the container from 200-1500ml, with their opinion, which is able to security the flexibility of the machinery we produce.
| Model | DXGF12-12-5 | DXGF18-18-6 | DXGF24-24-8 | DXGF32-32-8 | DXGF40-40-10 | DXGF50-50-12 |
| Rinsing head | 12 | 18 | 24 | 32 | 40 | 50 |
| Filling head | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping head | 5 | 6 | 8 | 8 | 10 | 12 |
| Power of main motor | 1.5kw | 2.2kw | 3kw | 4kw | 7.5kw | 7.5kw |
| Total weight | 2000kg | 2500kg | 3500kg | 5000 kg | 7800kg | 9000kg |
| Capacity | 1500-2500BPH | 3000-5000BPH | 5000-7000BPH | 8000-10000 BPH | 10000-13000BPH | 13000-16000BPH |
| Bottle diameter | 50-100mm | |||||
| Bottle height | 160-320mm | |||||
| Filling method | Isobaric filling | |||||
| Q1: How does the isobaric filling valve work to prevent CO₂ loss during filling? |
| A: Balance internal pressure first, then fill slowly to reduce carbon dioxide escape. |
| Q2: What is the filling speed range of the carbonated drink filling machine in bottles per hour? |
| A: 2000 to 80000 bottles per hour |
| Q3: Can the machine be used as a standalone unit, or does it need to be integrated into a full line? |
| A: It can work alone or be integrated into a full production line. |
| Q4: What brand of PLC and control system is used, and how user-friendly is the HMI interface? |
| A: Adopts mainstream brand PLC, with simple and easy-to-operate touch interface. |
| Q5: How does the machine handle bottle breakage or jams during high-speed operation? |
| A: Auto detection triggers stop and alarm, clears faults automatically. |
| Q6: What is the CIP (Clean-In-Place) process for this machine, and how long does cleaning take? |
| A: Circulating cleaning inside pipelines; takes 30-60 minutes. |
| Q7: Is the machine compatible with pre-forms and a bottle blowing machine, or does it require pre-made bottles? |
| A: Compatible with both preforms with blower and ready-made bottles. |
| Q8: What is the lead time for this machine, and can spare parts be sourced locally? |
| A: Standard: 4–6 weeks; customized: 6–8 weeks. Spare parts available locally with 48h delivery. |
