The 5 gallon filling machine is specially for 5 gallon bucket water filling. It integrates bottle multi-washing, automatic water filling and cap sealing into one machine. With PLC control of all actions of the whole machine, it can achieve stable flushing effect, accurate filling capacity, and airtight capping effect.

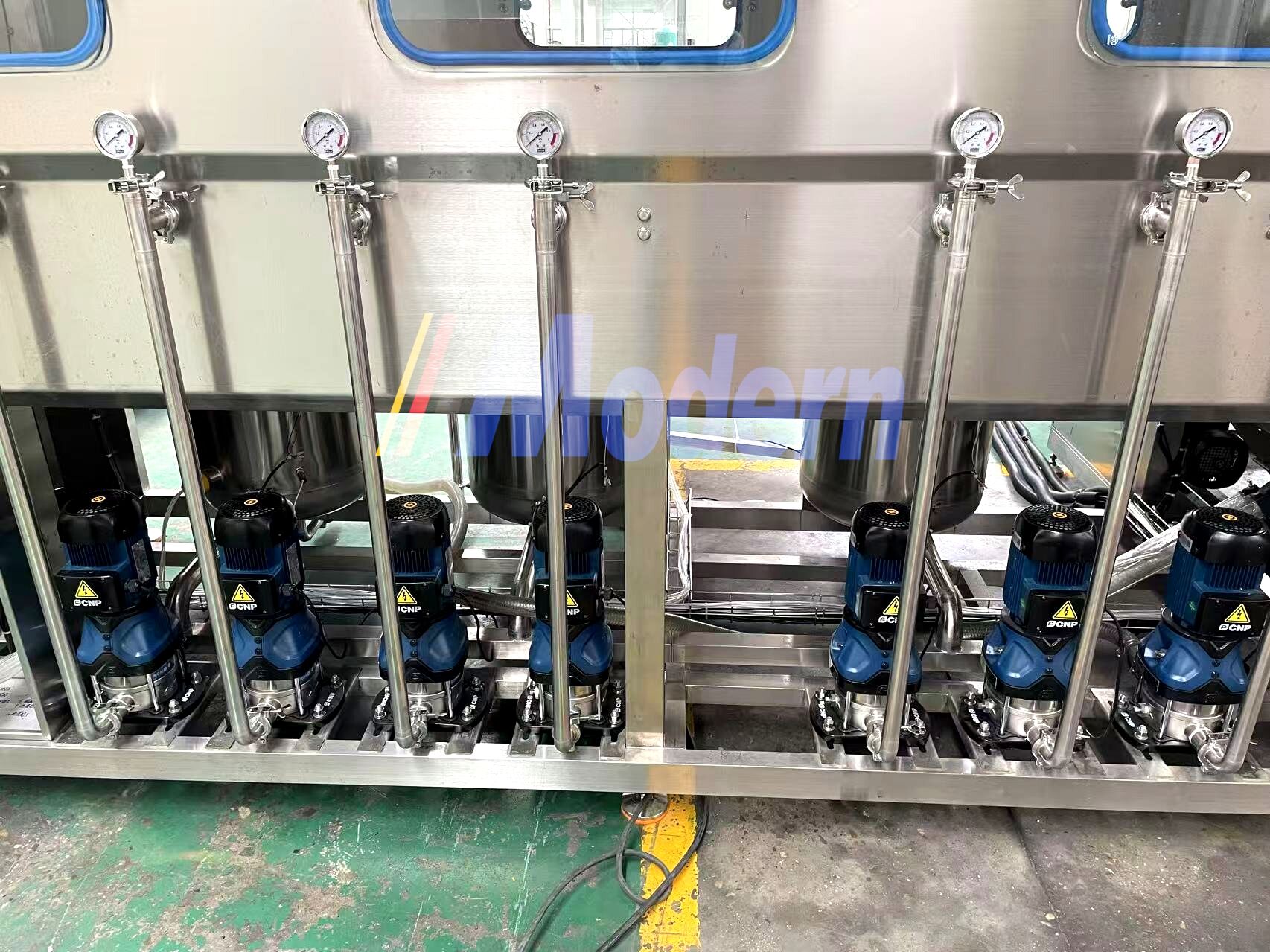

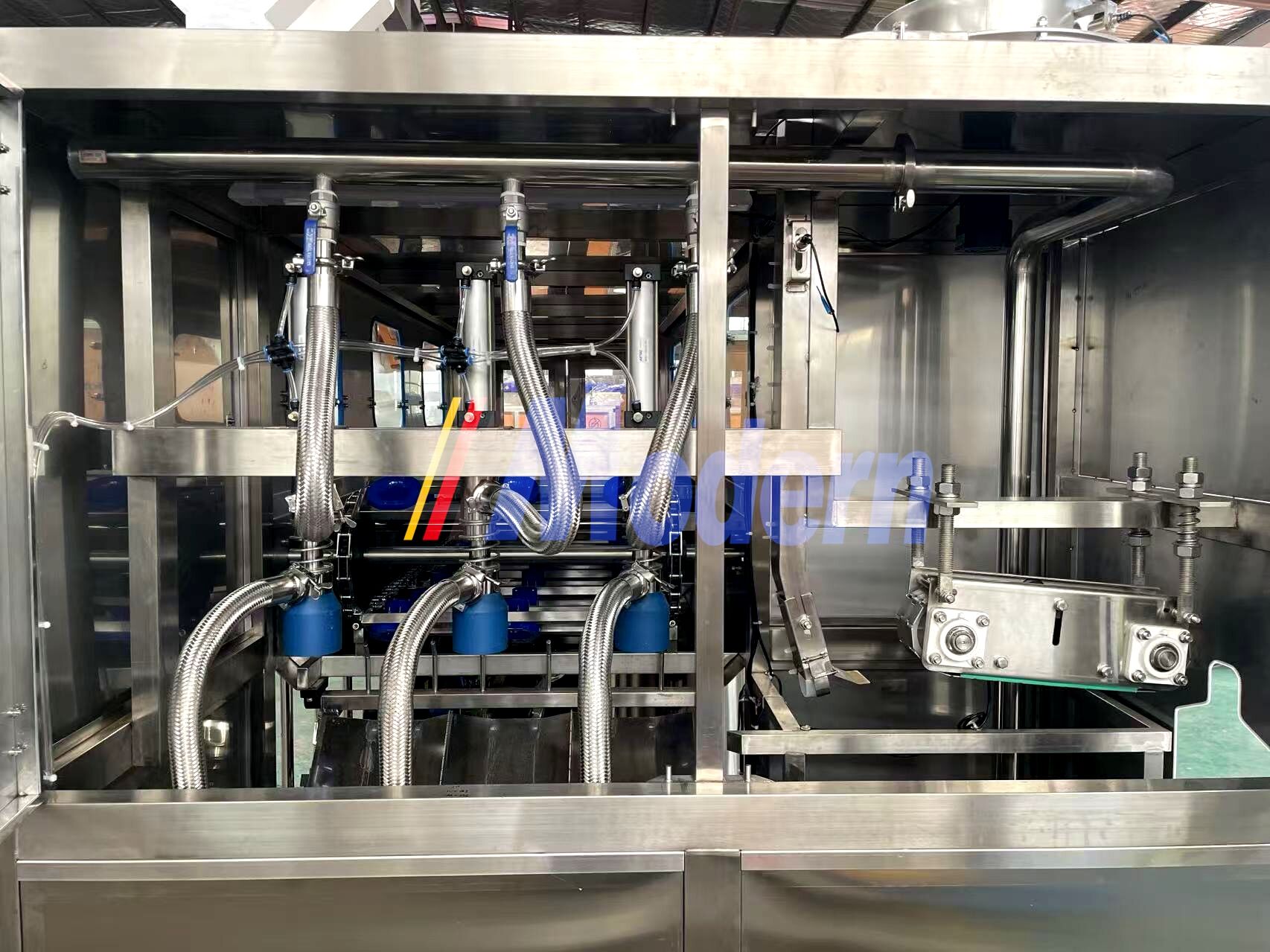

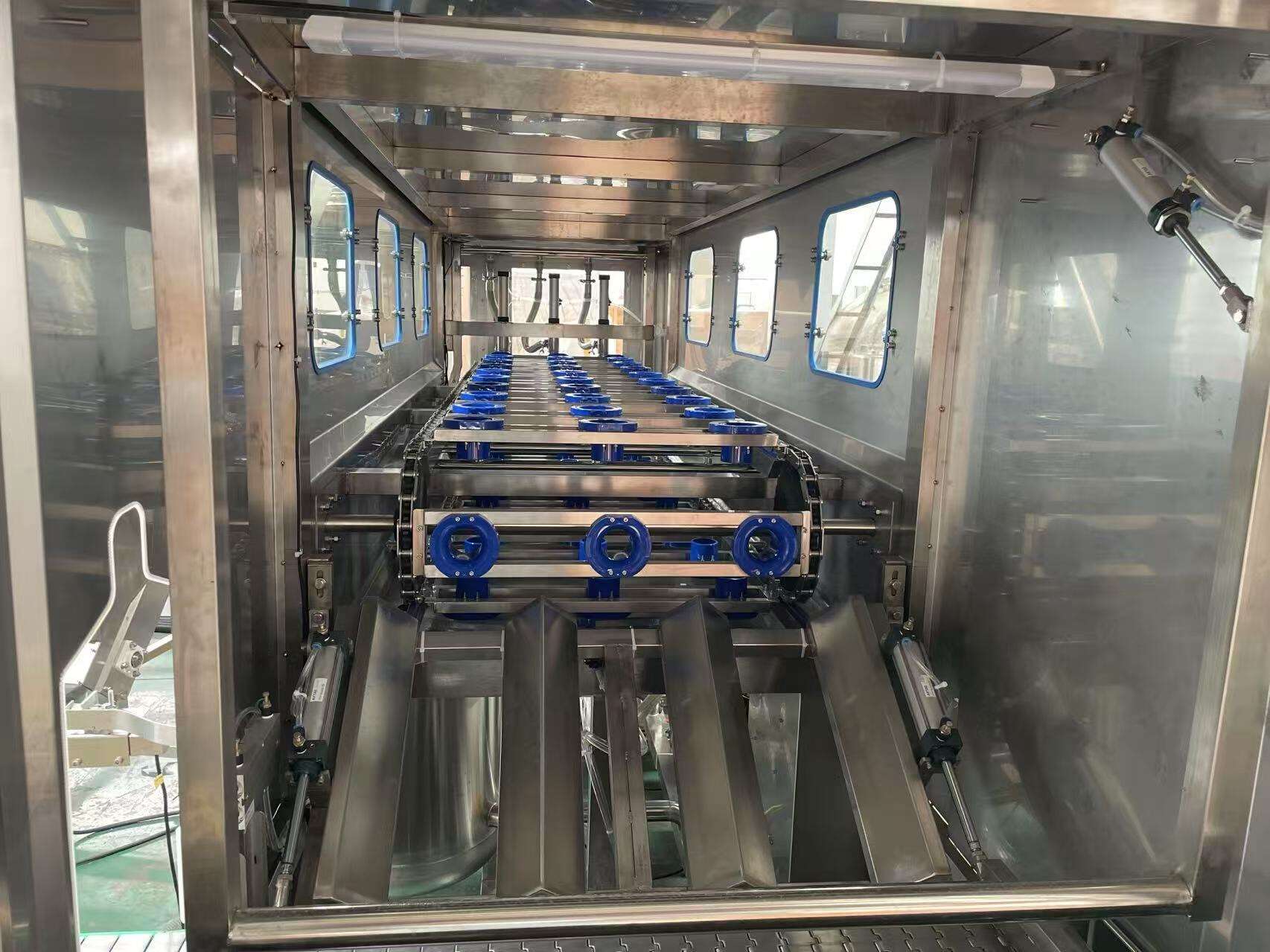

The 5 gallon water filling machine consists of a frame, water tank, pipes, water pumps, cylinders, transmission devices, electrical appliances, etc. It can complete empty barrel rinsing, filling, capping and other actions. After multiple rinsing steps, quantitative filling, automatic capping, all the actions of the whole machine are controlled by a computer, achieving stable flushing effect, accurate filling capacity, and sealing effect.
|
Model |
Filling |
Capacity |
Motor |
Overall dimension |
Weight |
|
QGF-100 |
1 |
100-120 |
1.75 |
3790x650x1550 |
800 |
|
QGF-300 |
2 |
200-240 |
3.22 |
3550x800x1800 |
2800 |
|
QGF-450 |
3 |
300-400 |
4.8 |
3550x1200x1800 |
4000 |
|
QGF-600 |
4 |
600 |
8.5 |
3650x1500x1800 |
5500 |
|
QGF-900 |
8 |
900 |
8.5 |
2200x1860x2700 |
7500 |
|
QGF-1200 |
12 |
1200 |
8.5 |
2560x2350x2750 |
9500 |
| Q1: What is the difference between your small bottle water filling machine (250ml–1500ml) and the 5-liter water bottling machine? |
| A: 1.Capacity: Small bottle model runs faster; 5L machine has lower speed. 2.Structure: Larger filling nozzles and conveyor for big bottles. 3.Layout: 5L line occupies more space. 4.Applicable scope: One for small drinking water, the other for large barreled water. |
| Q2: Can the 3-in-1 filling machine handle both still water and lightly sparkling water? |
| A: Yes, it can handle still water and lightly sparkling water. |
| Q3: How many filling valves does the machine have, and how does the valve count affect production speed? |
| A: Valve quantity varies by model. More valves bring higher production speed. |
| Q4: What is the filling accuracy of the water filling machine, and how is it measured? |
| A: Accuracy up to ±2ml, measured by liquid volume detection. |
| Q5: Can the machine be connected directly to a bottle blowing machine for an integrated blowing-filling line? |
| A: Yes, it can be directly connected to form an integrated production line. |
| Q6: What is the changeover time when switching between different bottle sizes? |
| A: About 15 to 45 minutes. |
| Q7: Does the 5-gallon filling machine support both barrel washing and filling in one unit? |
| A: Yes, it integrates barrel washing and filling functions. |
| Q8: What is the noise level of the filling machine during operation? |
| A: ≤75–80 dBA; typical ≤78 dBA |
