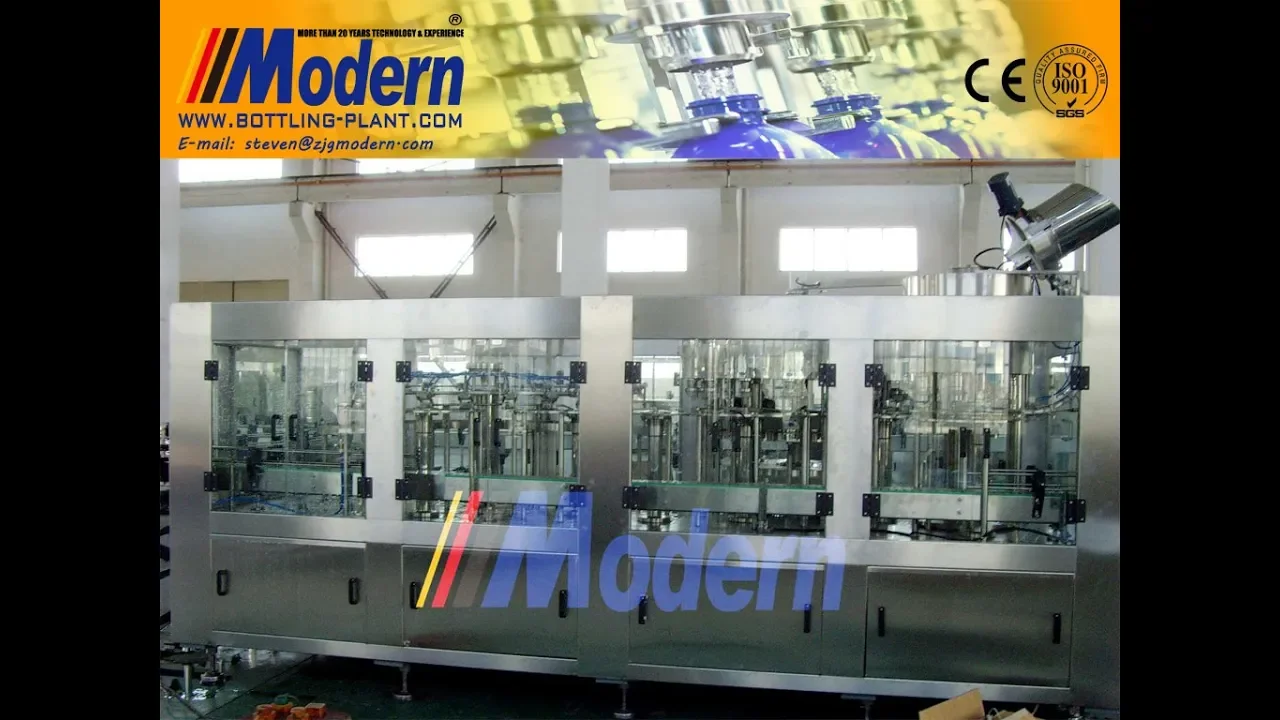

- Video
- FAQ
- Recommended Products

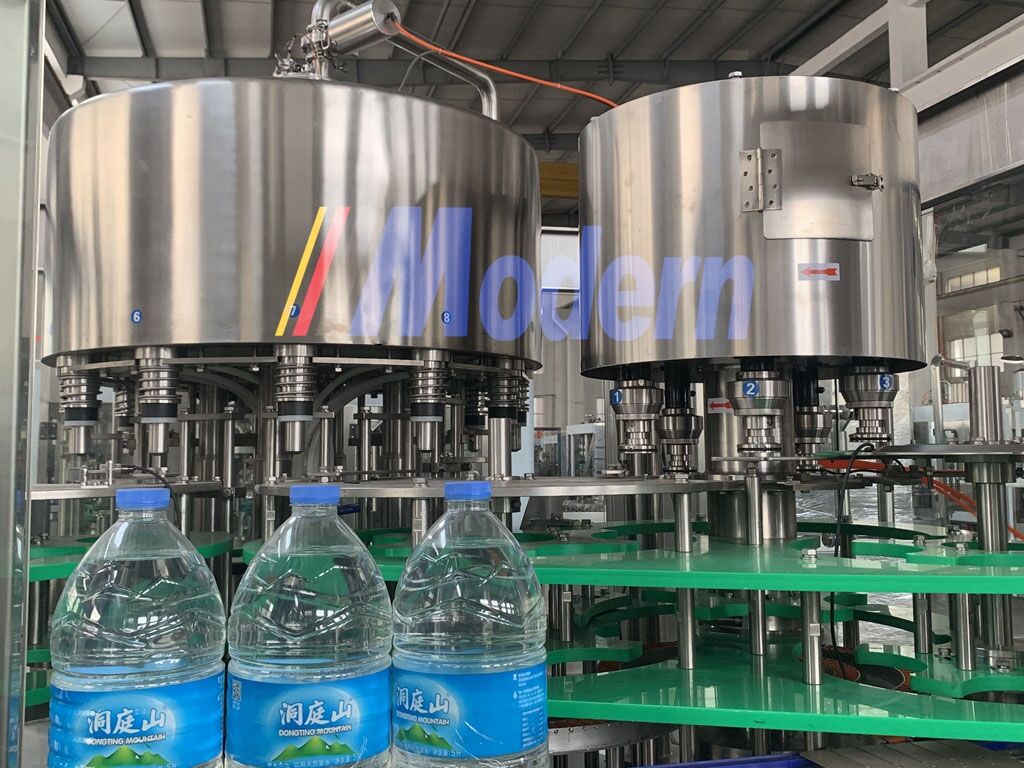

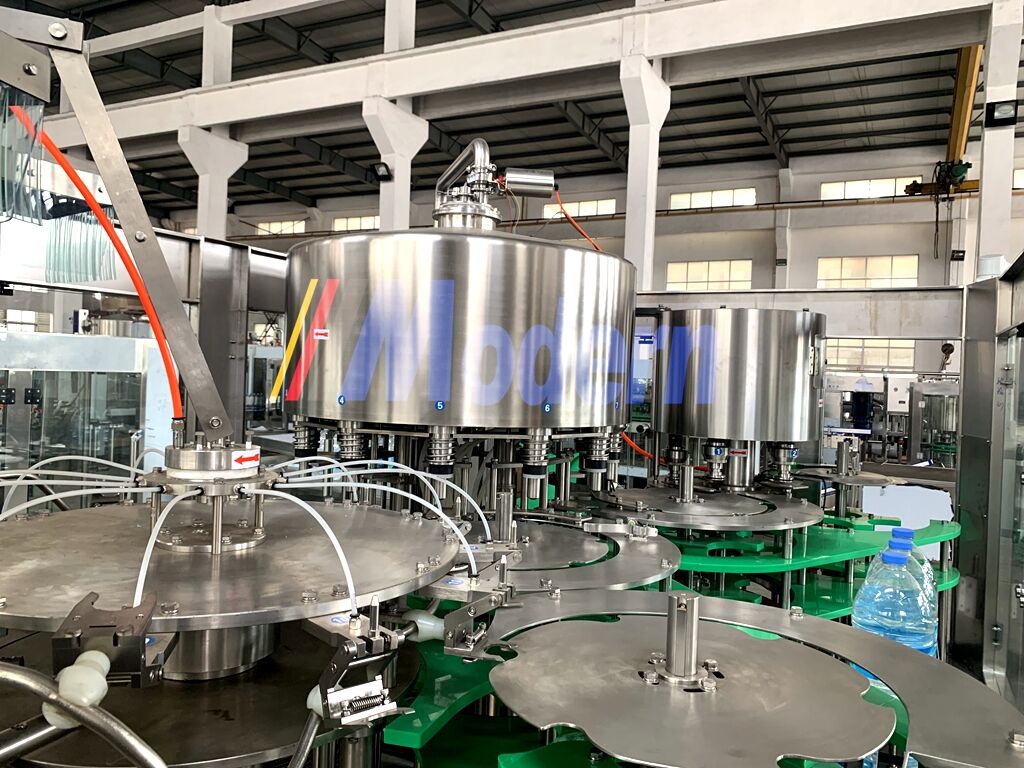

The water bottling machine is a rotary type filling machine that consisted of rinsing-filling-caping all together. It’s improved and designed from the small bottle filling machine and suitable for filling mineral water, pure water and distill water with capacity 800-2000 BPH. Our water bottling machine adopts the suspension design that allows to fill different type of the bottles from 5L to 10L with less changing parts.

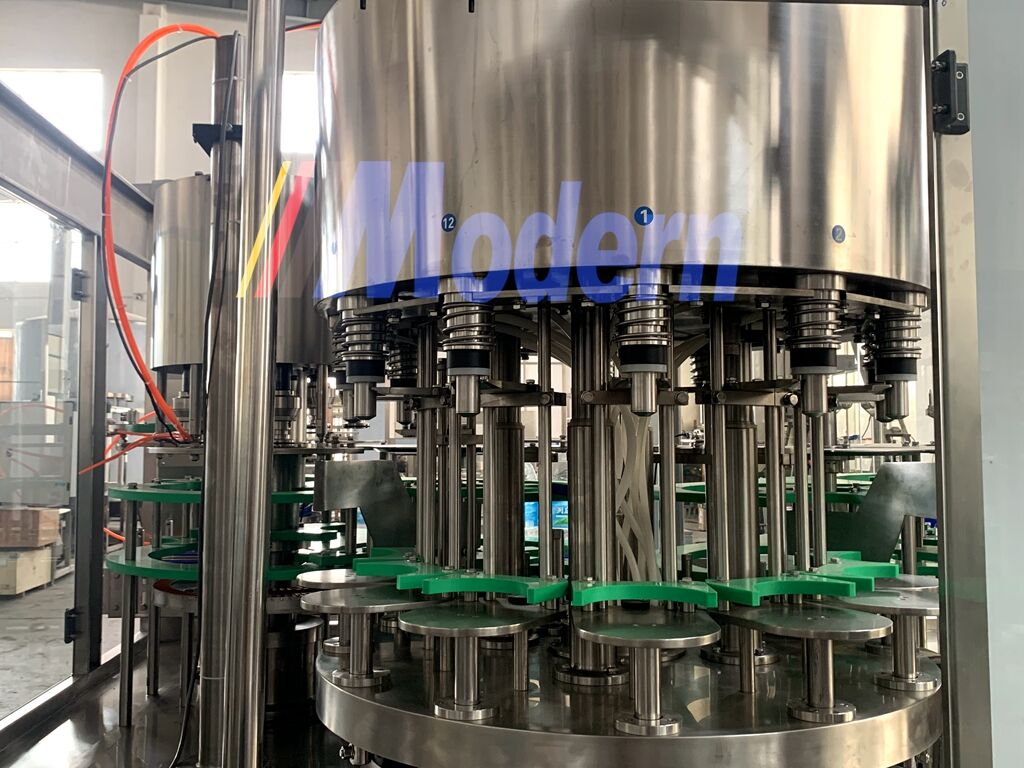

The 3-in-1 structure is adopted, which reduces bottle abrasion, ensures smooth conveying and convenient bottle replacement. The specially designed stainless steel bottle clamp does not touch the threaded part of the bottle neck to avoid secondary contamination. The high-speed and high-flow filling valve ensures high filling speed and precise liquid level for the whole bottling machine.
|
Model |
XGF8-8-3 |
XGF12-12-4 |
|
Capacity |
1000BPH |
2000BPH |
|
Applicable bottle |
Plastic bottle 5L-10L Plastic screw cap |
|
|
Applicable filling content |
Mineral water, wine, non-carbonated water |
|
|
Washing station |
8 |
12 |
|
Filling nozzle |
8 |
12 |
|
Capping head |
3 |
4 |
|
Main motor power |
3.5kw |
5.5kw |
|
Water pump power |
0.37kw |
|
|
Dimension (mm) |
2400*2100*2450 |
2800*2250*2450 |
|
Weight (kg) |
3000 |
4000 |
| Q1: What is the difference between your small bottle water filling machine (250ml–1500ml) and the 5-liter water bottling machine? |
| A: 1.Capacity: Small bottle model runs faster; 5L machine has lower speed. 2.Structure: Larger filling nozzles and conveyor for big bottles. 3.Layout: 5L line occupies more space. 4.Applicable scope: One for small drinking water, the other for large barreled water. |
| Q2: Can the 3-in-1 filling machine handle both still water and lightly sparkling water? |
| A: Yes, it can handle still water and lightly sparkling water. |
| Q3: How many filling valves does the machine have, and how does the valve count affect production speed? |
| A: Valve quantity varies by model. More valves bring higher production speed. |
| Q4: What is the filling accuracy of the water filling machine, and how is it measured? |
| A: Accuracy up to ±2ml, measured by liquid volume detection. |
| Q5: Can the machine be connected directly to a bottle blowing machine for an integrated blowing-filling line? |
| A: Yes, it can be directly connected to form an integrated production line. |
| Q6: What is the changeover time when switching between different bottle sizes? |
| A: About 15 to 45 minutes. |
| Q7: Does the 5-gallon filling machine support both barrel washing and filling in one unit? |
| A: Yes, it integrates barrel washing and filling functions. |
| Q8: What is the noise level of the filling machine during operation? |
| A: ≤75–80 dBA; typical ≤78 dBA |
