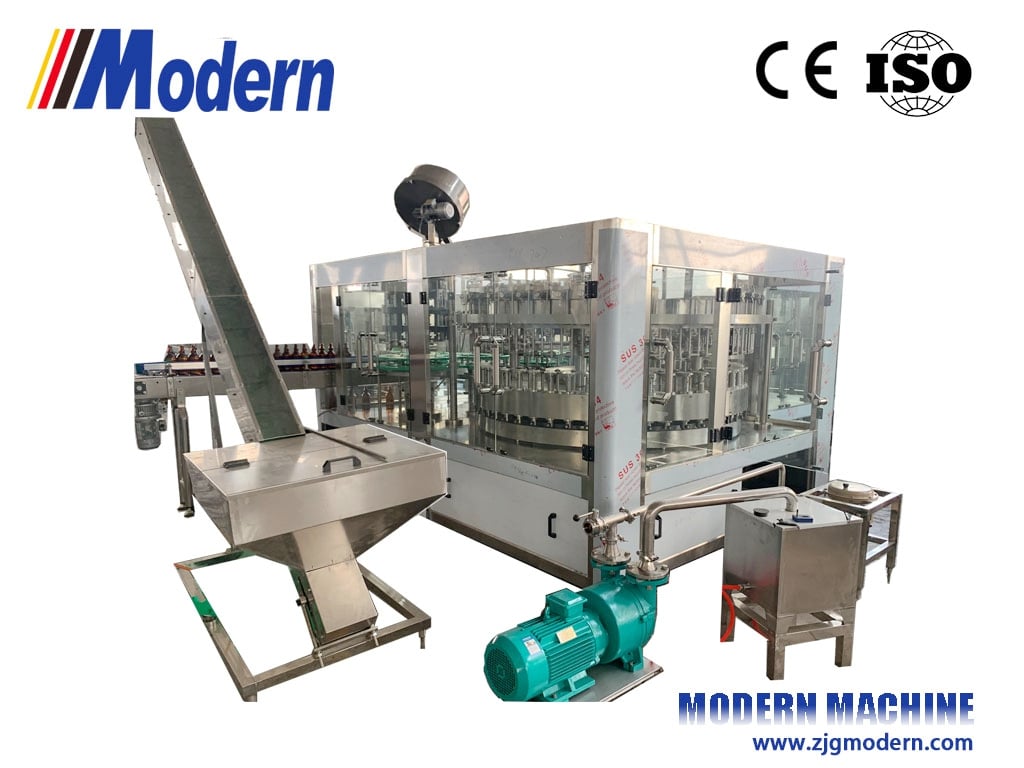

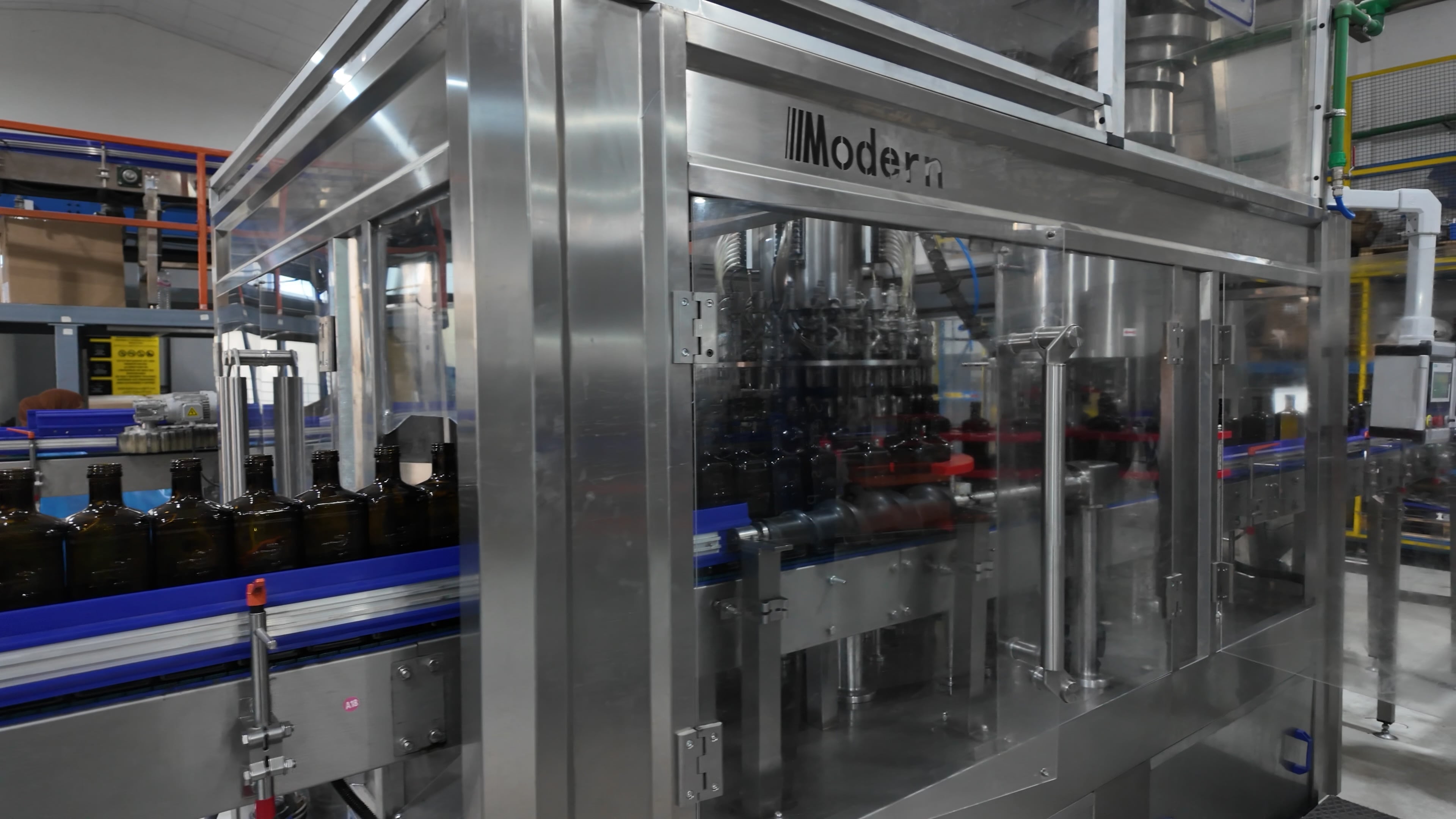

3-in-1 Triblock automatic beer bottling machine, combined with bottle rinsing, filling and capping functions in one machine. On the basis of introducing, digesting and absorbing advanced technology from Germany, innovative design is carried out according to the requirements of beer.

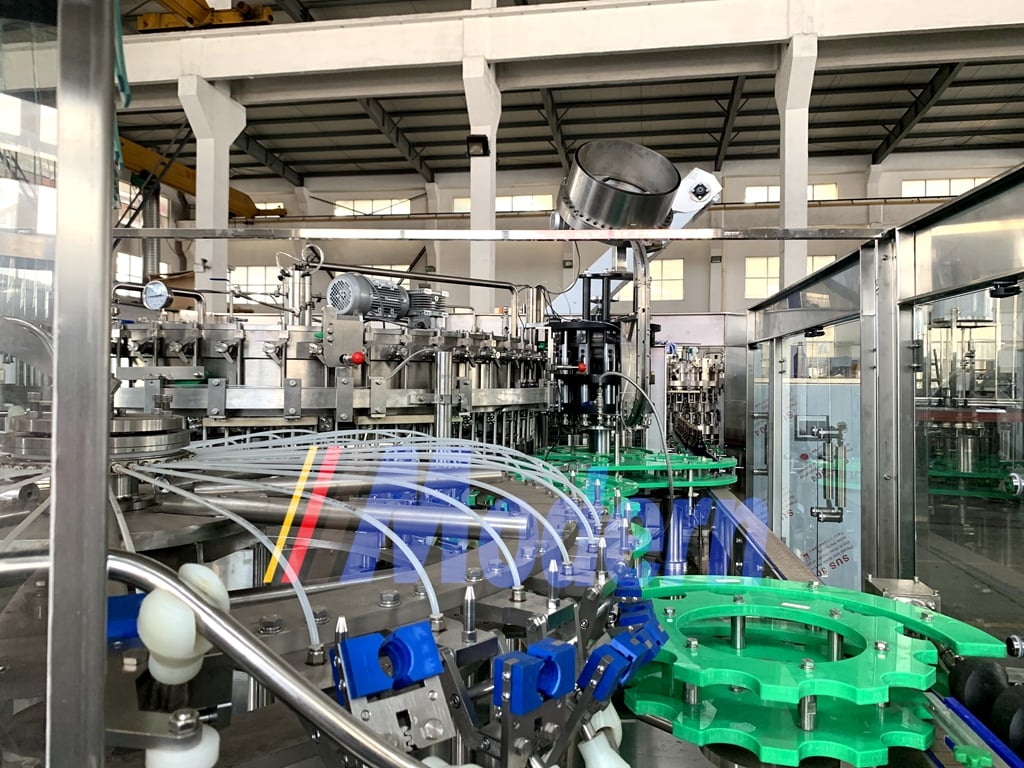

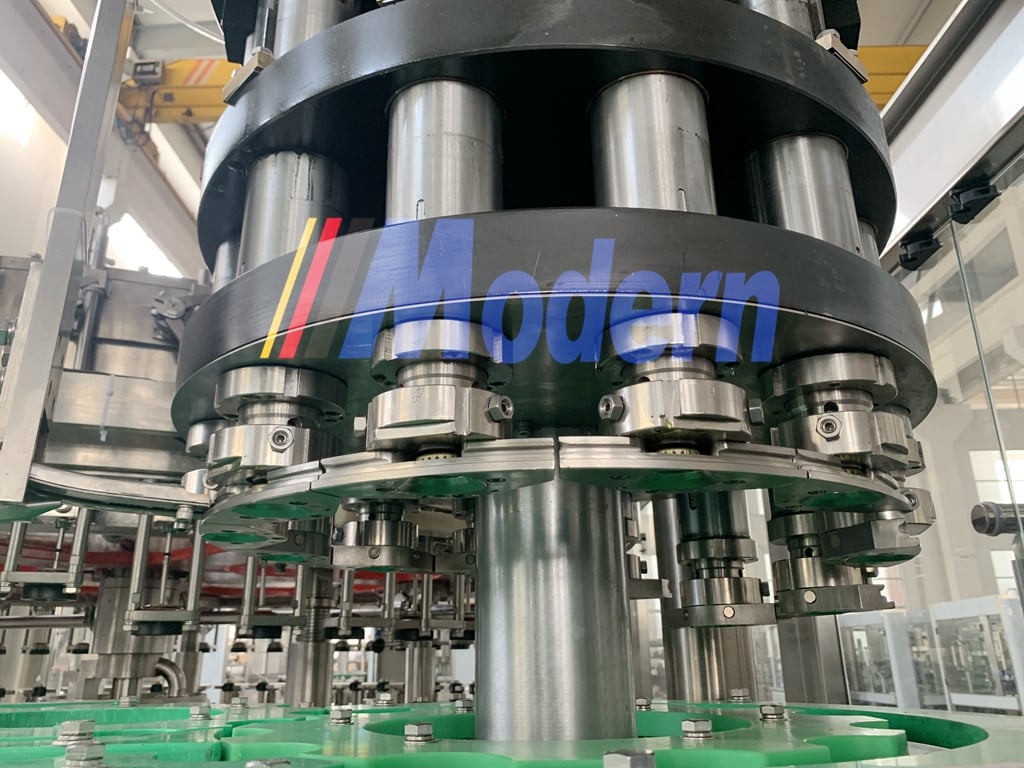

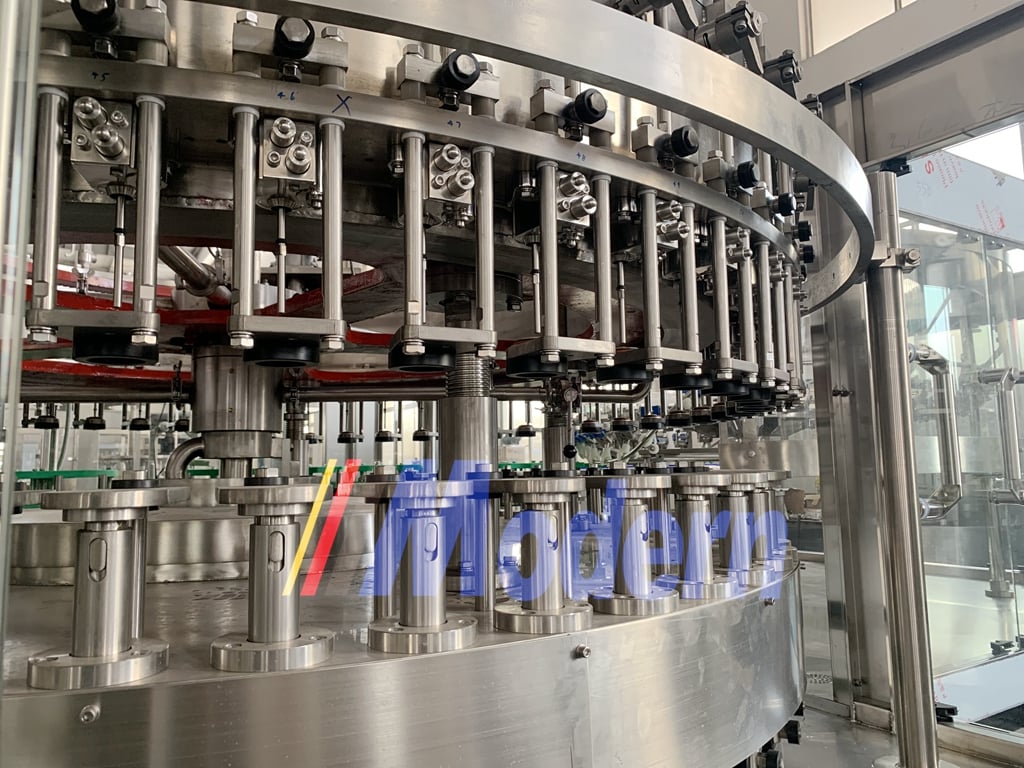

MODERN MACHINERY's latest beer bottling machine is a 3-in-1 triblock filling machine that combined with rinsing, filling and capping. It adopts the most technologically advanced level probe filler for glass bottles, which combines the best hygienic conditions with a greater flexibility, sustainability and performance level and reliable.
|
Model |
PXGFD18186 |
PXGFD24248 |
PXGFD32328 |
PXGFD404010 |
PXGFD505012 |
|
Capacity (B/H) |
3000-4000 |
5000-6000 |
7000-8000 |
8000-9000 |
9000-11000 |
|
Heads of rinsing,filling&capping |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-12 |
|
Suitable bottle height(mm) |
160-340 |
||||
|
Suitable bottle diameter(mm) |
Φ50-Φ100 |
||||
|
Wash water pressure(Mpa) |
0.25-0.3 |
||||
|
Filling way |
Isobaric filling&Two times vacuumized |
||||
|
Filling temperature(℃ ) |
0-5 |
||||
|
Filling pressure(Mpa) |
0.15-0.5 |
||||
|
Main power(kw) |
3 |
4 |
7.5 |
11 |
|
|
Total power(kw) |
3.18 |
4.18 |
7.68 |
||
|
Overall dimensions(mm) |
3010×2010×3260 |
3280×2420×3200 |
4430×2880×3200 |
4650×3200×3200 |
4987×3846×3200 |
|
Weight(kg) |
3800 |
5000 |
6800 |
8800 |
11000
|
| Q1: What is the oxygen pickup rate (TPO) of your beer filling machine, and how does it compare to industry standards? |
| A: TPO is 20-40 ppb, superior to common industry standard. |
| Q2: Does the machine pre-evacuate and CO₂-purge the bottle before filling to minimize oxygen contact? |
| A: Yes, it conducts pre-evacuation and CO₂ purging effectively. |
| Q3: What filling speed options are available for the beer filling machine in BPH? |
| A: Speed ranges from 200 to 24000 BPH, adjustable. |
| Q4: Can the machine handle high-carbonation craft beers and sour beers with varying CO₂ volumes? |
| A: Yes, it adapts to beers with different carbonation levels. |
| Q5: Is the machine compatible with both new glass bottles and returned/refillable bottles? |
| A: Yes, compatible with new and reusable glass bottles. |
| Q6: What foaming control technology is used during filling? |
| A: Adopts isobaric and bottom-up filling to control foaming. |
| Q7: What is the recommended maintenance schedule for the beer filling machine? |
| A: Daily routine check, weekly partial maintenance, monthly full inspection. |
