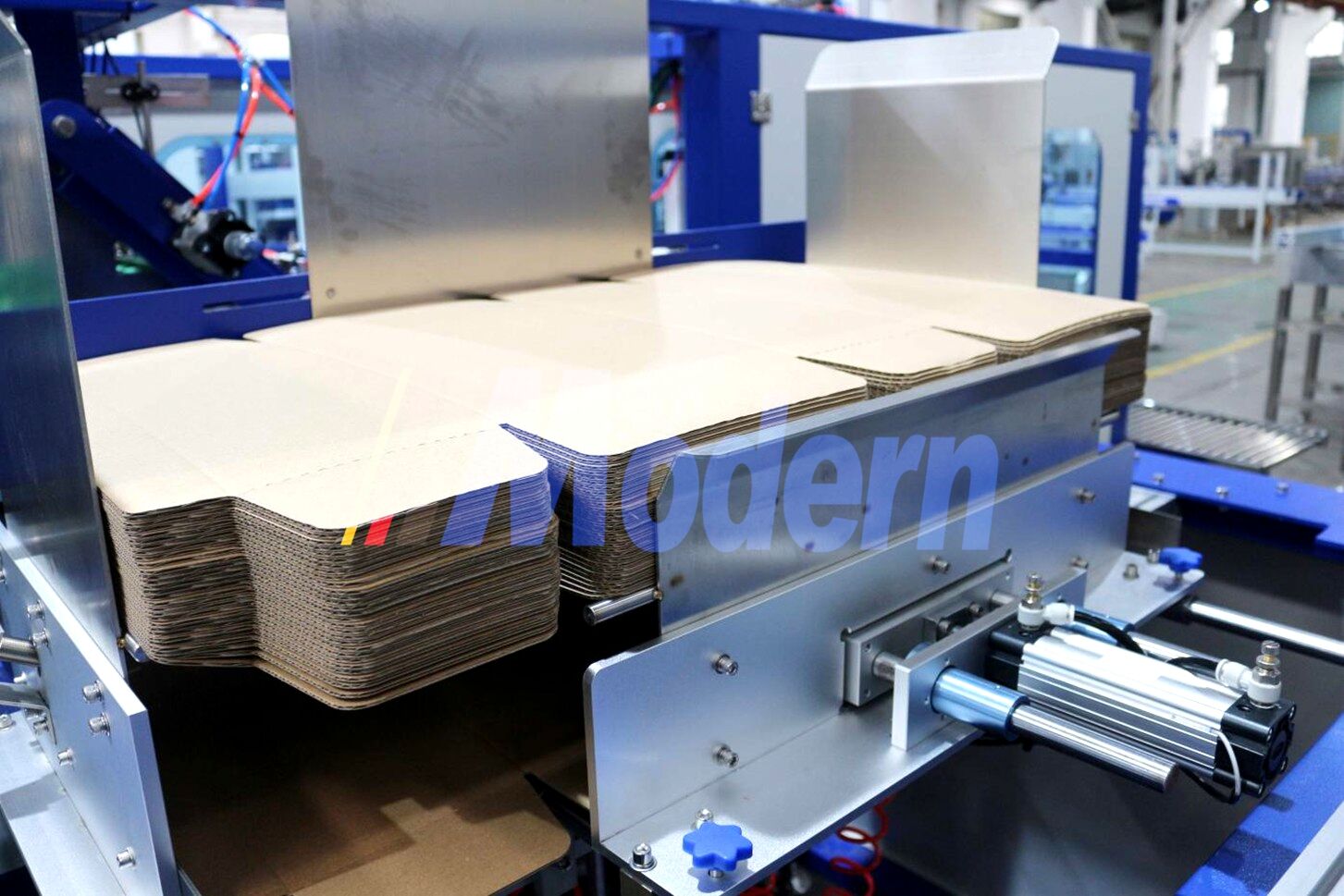

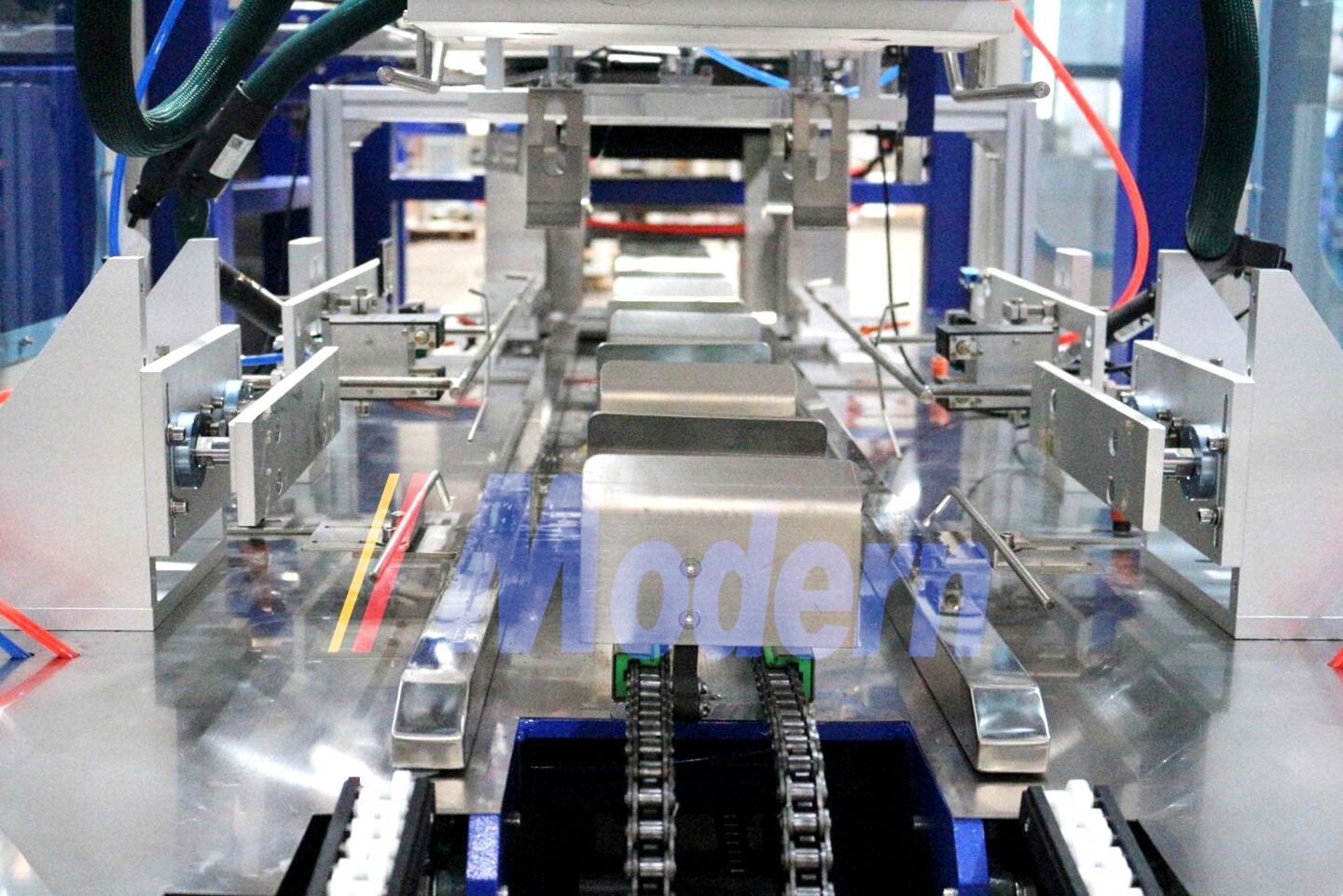

The cardboard carton wraparound packing machine is an automatic machine that wrap a sheet of die-cut corrugated cardboard around the collated bottles. Then it uses hot melt glue to seal the carton and fix it in shape for future palletizing and transportation. Our wraparound case packer can save up to 30% in material cost.
It's used to automatically pack various plastic bottles, cans, barrels and other products into cartons. This cardboard carton wraparound packing machine is suitable for carton packing process lines such as water, beverages, and oil, and is also suitable for bottle/can product cartoning operations in other industries. The drop-down cartoning machine has strong compatibility and is suitable for cartons and bottles of different specifications.
|
Model: |
PXB-18 |
|
Speed: |
12~18cartons/min |
|
Applicable Products: |
Various Bottles, Barrels, Cans, Carton Brick Pak, etc Products |
|
Main Supply Power: |
About 10KW |
|
Glue Box Brand: |

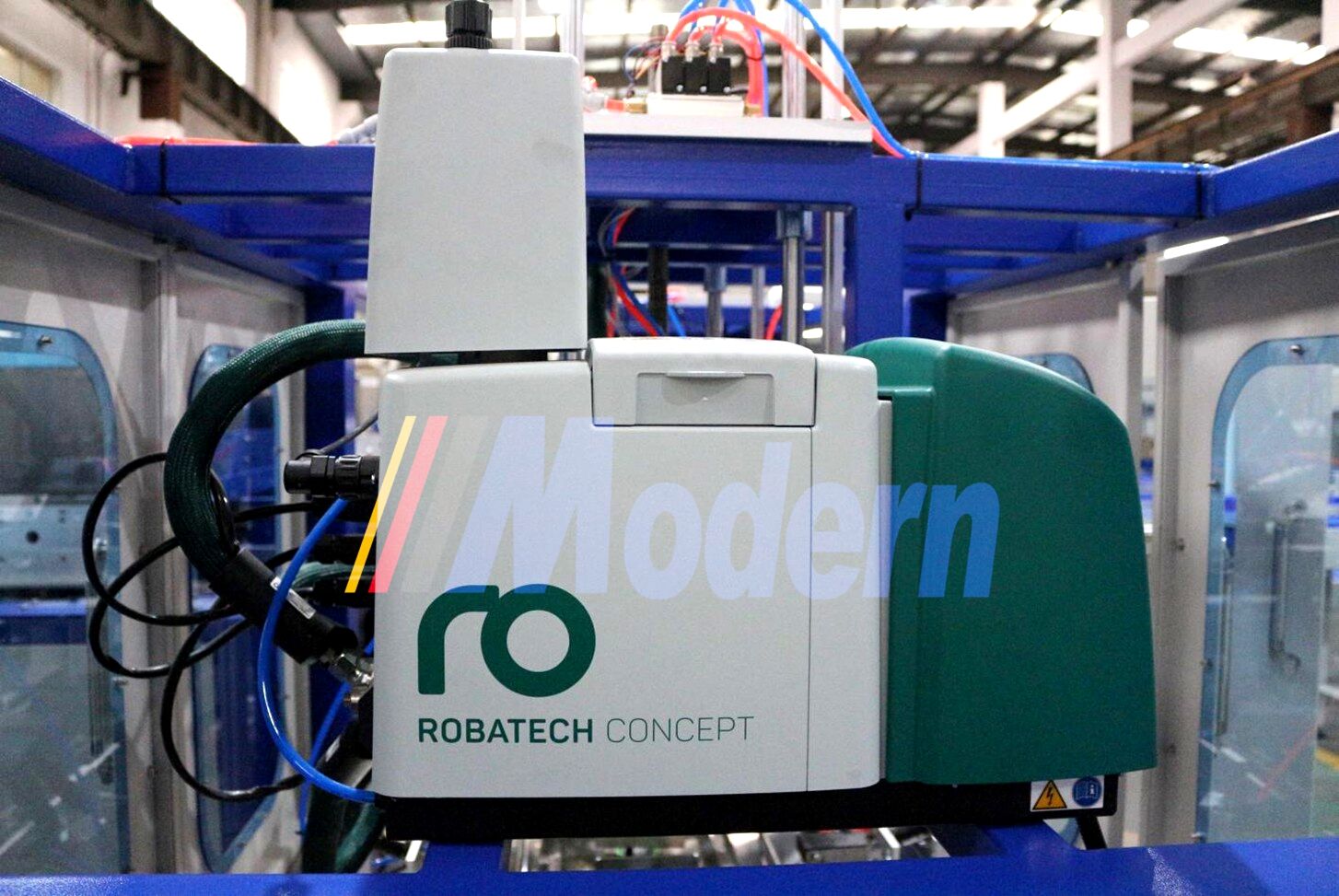

NORDSON, ROBATECH,CHINA BRAND |
|
Voltage: |
220V/380V,3Phase, 50Hz/60Hz |
|
Air Consumption: |
0.9m3/h |
|
Air Pressure: |
0.6Mpa |
|
Working Noise: |
≤75db |
|
Machine Weight: |
About 3000KG |
|
Machine Dimension: |
7870*2800*1800mm(As Fact) |
