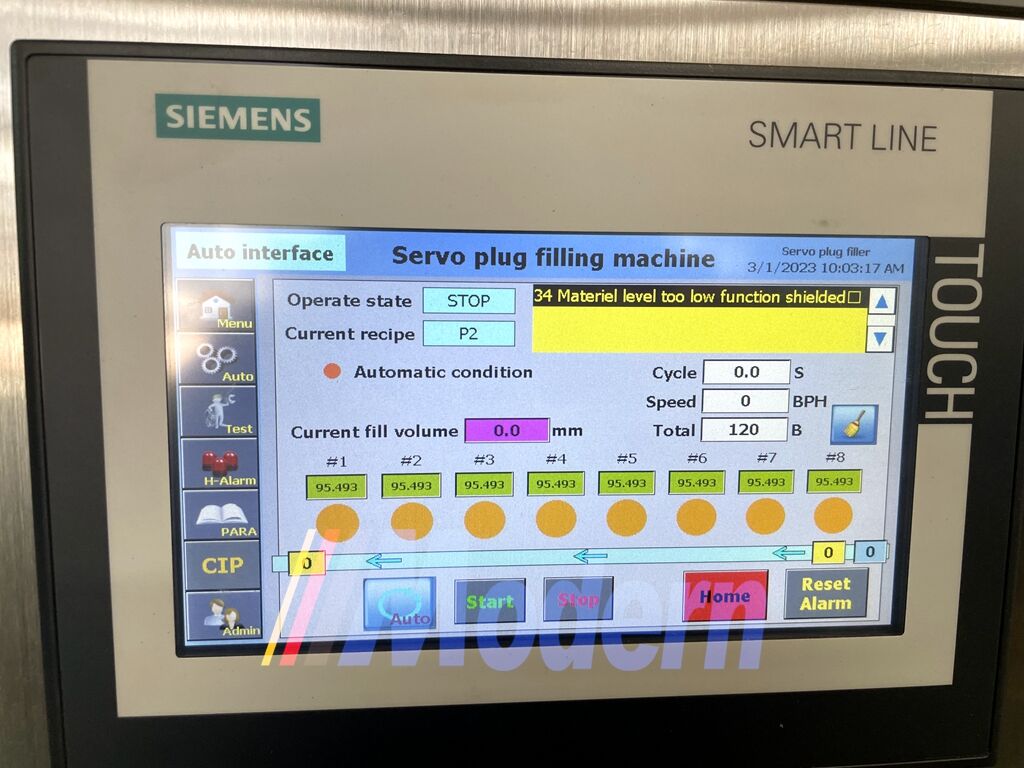

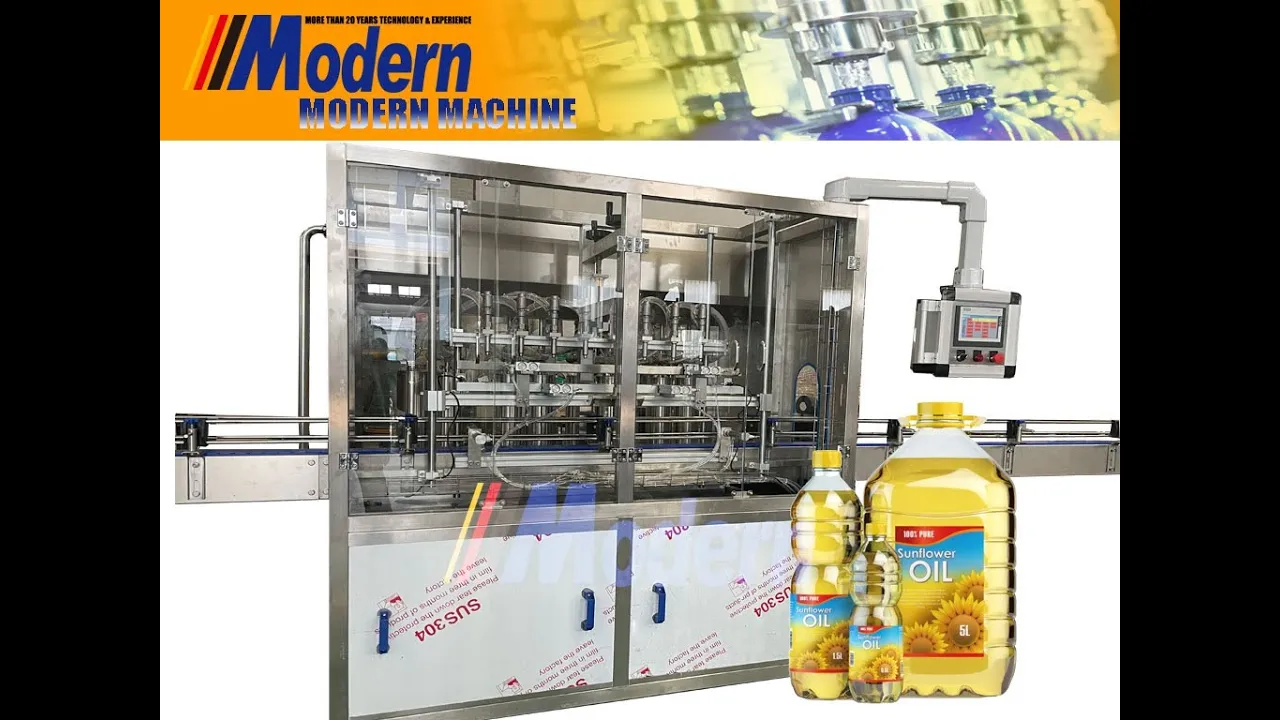

This edible oil filling machine is an automatic linear type piston filling machine. It is suitable for bottle sizes ranging from 200ml to 5L, adopts PLC control and servo motor filling with ±0.5% filling accuracy. The operator only needs to adjust the filling volume on the touch screen control panel, and the metering volume of each filling head can also be adjusted individually.

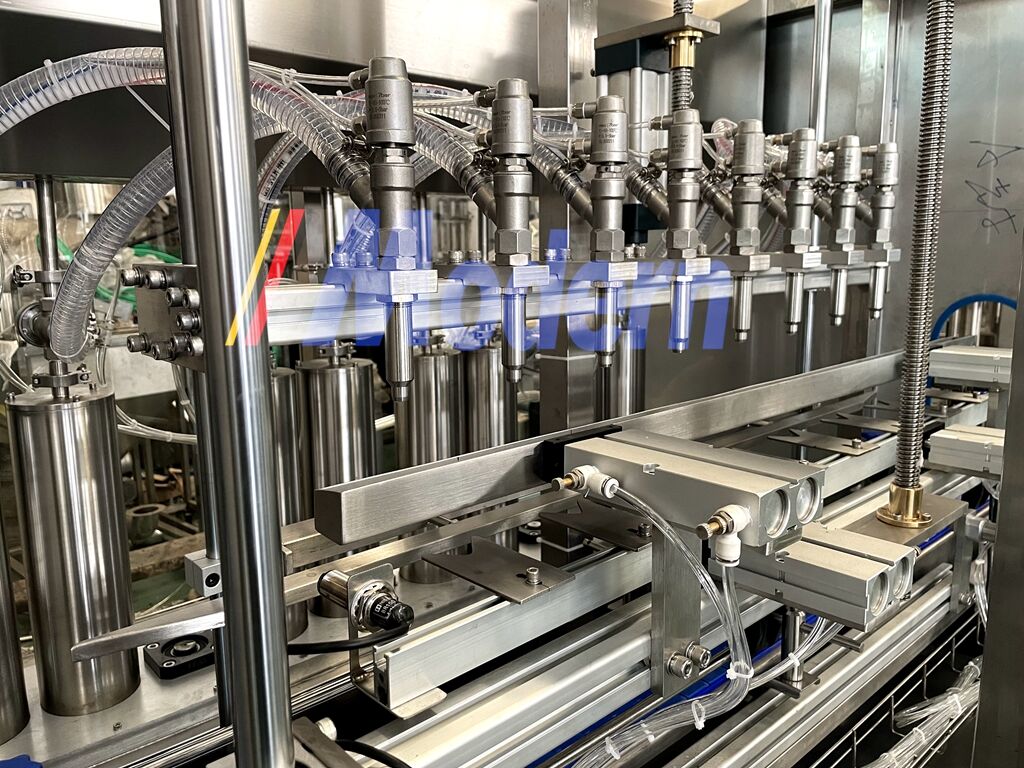

The servo motor can controll the filling more accurate and also it can realize the filling nozzle diving bottom-up filling. At the same time, the filling volume can be adjusted on the touch screen and has automatic fine turning function for each filling head.

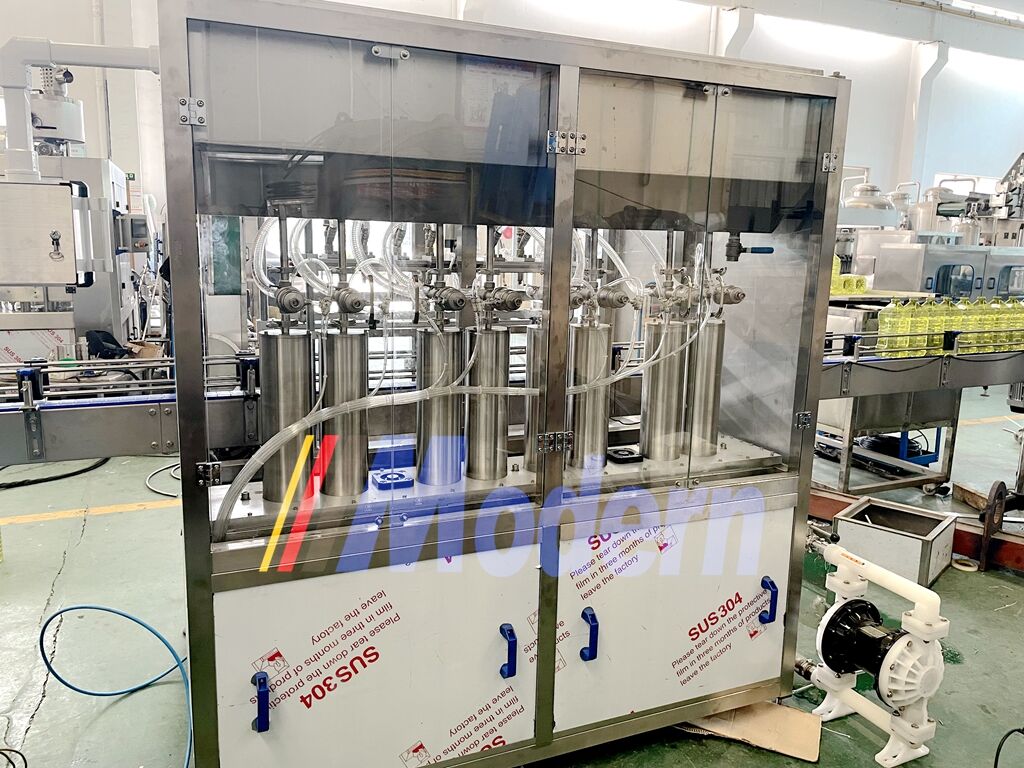

The piston can be taken off from the cylinder for washing, which allows for better removal of residual material in the hopper tank and cylinder.
|
Material |
SUS304 and SUS316L |
||||
|
Filling heads |
4 |
6 |
8 |
10 |
12 |
|
Filling range |
100-1000ml/ 1000-3000ml/ 3000-5000ml |
||||
|
Filling speed
(bottles/ hour & based on 500ml bottle) |
800-1200 |
1200-1800 |
1800-2500 |
2200-3000 |
2500-3500 |
|
Filling precision |
±0.5-1% |
||||
|
Power |
220/380V 50/60Hz 1.5Kw |
||||
|
Air pressure |
0.4-0.6Mpa |
||||
|
Machine size
(L*W*Hmm) |
1600*900*2200 |
2000*900*2200 |
2400*900*2200 |
2800*900*2200 |
3200*900*2200 |
|
Weight |
550Kg |
650Kg |
750Kg |
850Kg |
950Kg |
| Q1: What is the filling accuracy of your edible oil filling machine — is it ±1g or better? |
| A: Accuracy within ±1g |
| Q2: What is the difference between a piston filler and a flowmeter filler for edible oil — which should I choose? |
| A: Piston: high precision, fit small volume. Flowmeter: fast speed, suit large volume. |
| Q3: How does the machine handle oils with different viscosities — from light olive oil to thick palm oil? |
| A: Adjustable speed and pressure adapt to various oil viscosities. |
| Q4: What bottle sizes can the machine fill in a single run without changeover? |
| A: Supports multiple common bottle sizes without part replacement. |
| Q5: Is the machine linear (inline) or rotary, and what is the difference in terms of capacity and floor space? |
| A: Linear: compact, low output Rotary: larger space, high capacity |
| Q6: Does the machine include an anti-drip nozzle and drip tray to prevent product waste? |
| A: Yes, equipped with anti-drip nozzles and drip trays. |
| Q7: What is the filling speed for a linear vs. rotary oil filling machine? |
| A: Linear slow, rotary fast |
| Q8: Can the machine be integrated with a capping machine and labeling machine? |
| A: Yes, it supports seamless integration. |
